DAYLIGHT AND UV RESIN TECHNOLOGY

Photocentric

Since 2002 Photocentric have been at the cutting edge of innovation in Photopolymer, manufacturing a wide variety of materials that harden in light. Patent holders in visible light curing technologies, over the last 20 years they have supported and innovated a broad range of applications.

Innovation Experts

The world’s largest and most trusted manufacturer of crystal clear polymer craft stamps, delivering an ever-expanding assortment of bespoke quality craft products to customers worldwide.

Photocentric applied their understanding of UV photopolymerisation to the visible part of the spectrum, they unlocked the combination of LCD screens and 3D Printing. Patenting the daylight curing process and invented the use of LCD screens as the selective light source for a 3D printer. This innovation has won them many awards but most importantly the technology is disrupting additive manufacture industry.

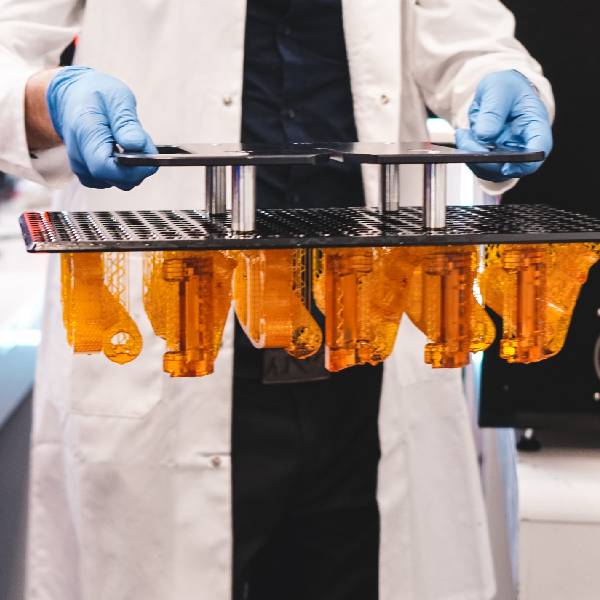

Photocentric Build Plate Prints | 3D APAC | Sydney Australia

The concept Photocentric invented. Using an LCD screen as a light source, an entire layer is flashed at once, rather than one single point. LCD printing is a quicker alternative to other 3D printing methods.

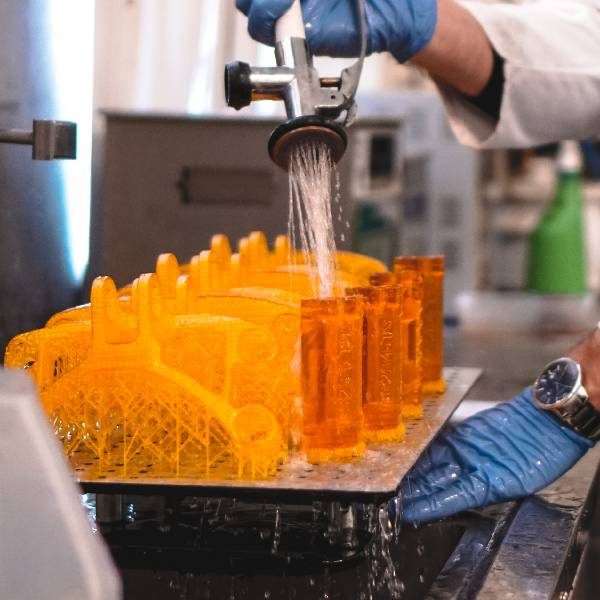

Translucent Amber Prints LC Magna | 3D APAC | Sydney Australia

LCD Printing explained

1. USING LCD LIGHT SOURCE

LCD printing is a newer method which uses an array of LCD panels as a light source shining parallelly directly on to the build area. By rapidly flashing the entire layer at once, rather than one single point, whole layers can be printed much faster.

2. SLICING AN IMAGE FOR THE SCREEN

The LCD screen only lets the light enter where it is to be cured for the finished part. It uses a series of black and white images for each layer. This method simplifies the process and removes the need for other materials, such as mirrors or galvanometers.

3. DAYLIGHT RESIN CURING PROGRESS

LCD 3D printers use Photocentric’s unique daylight liquid resin which instantly hardens into plastic as it is exposed to LED light via an LCD screen. The powerful LCD panels shine lights at the model, the LCD panel then blocks off areas that are not to be solidified through black and white images. Black blocking the light to the resin and white exposing the parts for the light to cura.

4. PRINTING LAYER BY LAYER

Photocentric prints in a “bottom-up” method, where the object being printed is pulled out of the resin and rises up. The process involves moving up one layer higher than the previous after each layer is cured. The process is repeated layer by layer until the shape is built.

Desktop Solutions

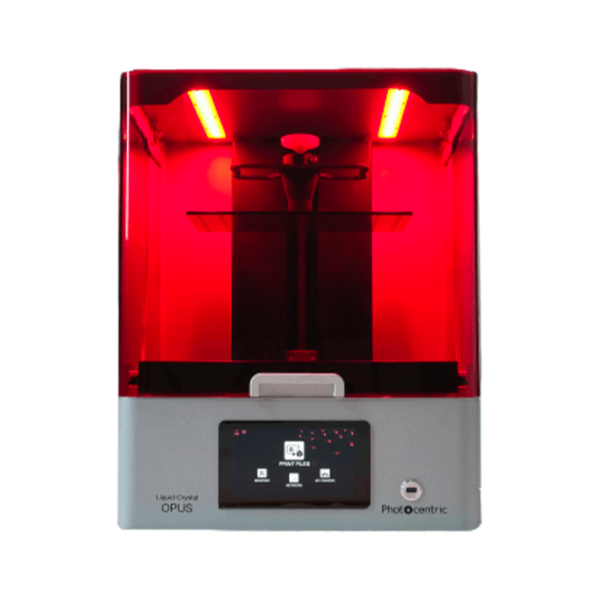

LC Opus

Built for any purpose of 3D printing at home, in a dental laboratory or engineering workshop. Its intuitive and simple to use operation makes the LC Opus ideal for beginners up to experienced technicians.
Build Volume
310 mm x 174 mm x 220 mm
Resolution

XY resolution of 81µm provides scanned data accuracy of
≥95% at <100µm and ≥70% at <50 µm

Printing Speed
Incredibly fast cure speed of 2 seconds per layer at 50µm layer thickness
Addition Information

– A custom monochrome screen in a unique design supports
consistent and reliable
high performance
– Photocentric’s patented peel release technology ‘Vat-Lift’ ensures reliability over large surface area printing
– Robust double-sealed vat construction with practical carry handles and pouring spout

Manufacturing Solutions

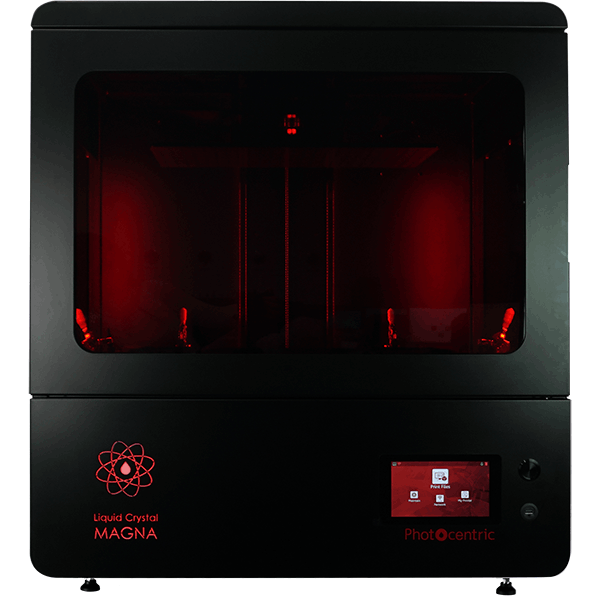

LC Magna

Presenting LC Magna represents the pinnacle of Photocentric’s 3D printer LCD technology. From on-demand to full production the LC Magna is the perfect partner to consistently deliver accurate end-use parts at scale for small batch to mass manufacturing.
Build volume
510 mm x 280 mm x 350 mm
Resolution

XY resolution of 137µm

Printing Speed

13.3mm per hour enabling large volumes of parts to be printed quickly, accurately and consistently.

Material
Complemented by the wide range of high performance resins, LC Magna delivers an unbeatable value proposition and application versatile.
Visit the online shop now

TO FIND YOUR 3D PRINTING SOLUTION

If you require more custom and tailored additive manufacturing solution for yourself or business, please reach out to us via our contact form, call or email. We are more than happy to help you reach your goals with 3d printing technology.
